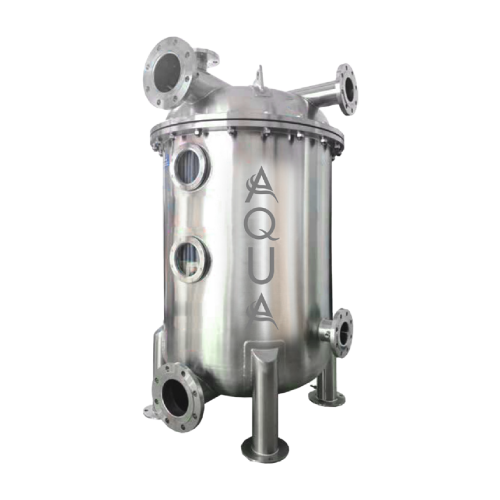

REGENERATIVE MEDIA FILTER

The AQUA Advanced mechanism Regenerative Media Filter System is an ecofriendly,
energy-saving filtration solution. Automated control filtration system it,
which efficiently recycles perlite powder without backwashing and utilizes
frequency conversion technology to reduce electricity consumption

Technical features

  • Patented JET WASH Technology which efficiently removes captured impurities from the filter element.
  • Activated Regeneration Process Reintegrates filter media, eliminating the need for backwashing.
  • Reduces water consumption by up to 90% compared to conventional sand filters.
  • Lowers expenses for heating and chemical dosing of new water.
  • NSF/ANSI 50-2019 Compliant, Ensures high-quality filtration standards.
  • Filtration Rate: 3m³/m²/hr with fine filtration accuracy of 1 micron.
  • Achieves post-filtration turbidity levels below 0.1 NTU, delivering clear water without flocculants

Design & Construction features

  • Made from 304 or 316 stainless steel, ensuring corrosion resistance and high mechanical strength.
  • Customizable Configurations, available in different heights with adjustable flange orientations for easy installation.
  • Ideal for Retrofitting. Compact design allows for shorter pipelines, making it easier to install in space constrained
    machine rooms.

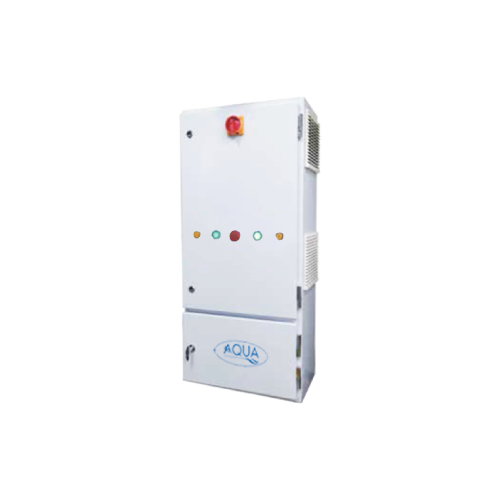

  • Advanced Control System developed by expert team with 30+ years of experience

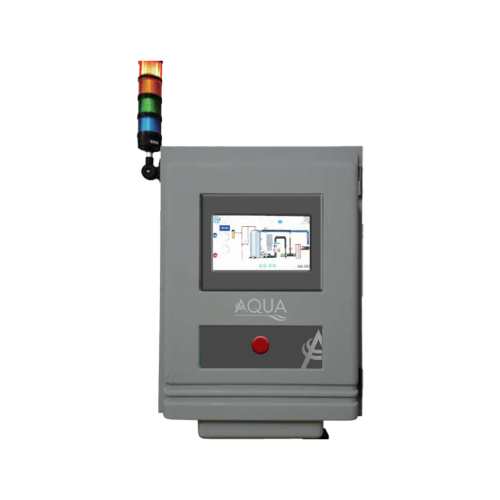

  • User-Friendly Interface Features with touchscreen control panel and remote monitoring for ease
    of operation. Designed to meet the operational demands of plant rooms with stable and reliable

Optimized Footprint & Sustainability features

  • Each filter element functions independently, providing 4× the filtration area of traditional sand
    filters for attaining high-efficiency in filtration.
  • Lowers water treatment chemical consumption by 30% compared to sand filters.
  • Low Water Head Loss & Energy Efficiency, operates at <100kPa pressure, requiring 30% less energy
    due to optimized design.
  • Frequency Conversion Technology enables precise control of pump speed, further reducing
    energy consumption by 50%.
  • Reduces floor space, construction, and piping costs by 75% at the same filtration flow rate.

Models

CODE DESCRIPTION
AQFS-450 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 450 X 1320
AQFS-500 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 500 X 1320
AQFS-550 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 550 X 1320
AQFS-600 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 600 X 1320
AQFS-660 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 660 X 1320
AQFS-710 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 710 X 1320
AQFS-760 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 760 X 1320
AQFS-810 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 810 X 1320
AQFM-660 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 660 X 1570
AQFM-710 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 710 X 1570
AQFM-760 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 760 X 1570
AQFM-810 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 810 X 1570
AQFM-860 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 860 X 1570
AQFM-920 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 920 X 1570
AQFM-970 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 970 X 1570
AQFM-1020 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 1020 X 1570
AQFT-810 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 810 X 2070
AQFT-860 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 860 X 2070
AQFT-920 REGENERATIVE MEDIA FILTER - TANK SIZE -Ø 920 X 2070
AQFT-970 REGENERATIVE MEDIA FILTER - TANK SIZE -Ø 970 X 2070
AQFT-1020 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 660 X 2070
AQFT-1070 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 1070 X 2070
AQFT-1120 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 1120 X 2070
AQFT-1180 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 1180 X 2070
AQFT-1230 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 1230 X 2070
AQFT-1280 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 1280 X 2070
AQFT-1330 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 1330 X 2070
AQFT-1380 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 1380 X 2540
AQFT-1440 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 1440 X 2540
QFT-1490 REGENERATIVE MEDIA FILTER - TANK SIZE - Ø 1490 X 2540
