DRX SERIES

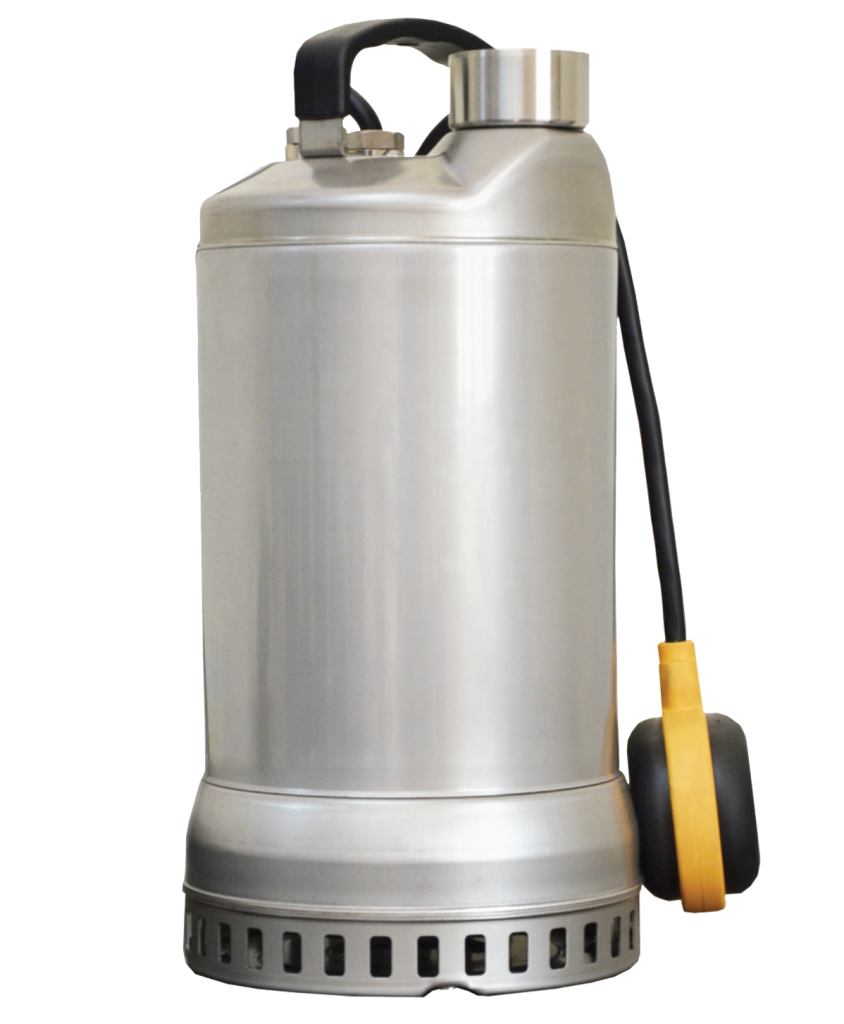

Submersible electric pump engineered for reliable drainage service in applications involving dirty and sandy water.

Technical features

Submersible electric pump suitable for drainage of dirty and sandy water containing suspended solids up to 8 mm in diameter.
Pump construction in stainless steel AISI 304 with double mechanical seal and intermediate oil chamber.
Supplied with 10 m H07RN-F power supply cable.
Asynchronous submersible motor operating at 2,850 rpm with Class F (155 °C) insulation and IP68 protection rating.
Motor cooling achieved by the surrounding pumped liquid.
Maximum permissible immersion depth of 10 m.

Inquire

Models

CODE	DESCRIPTION
DRX-7M-AUT	MAXIMUM IMMERSION 10 METERS. POWER 0.75HP/0.55KW. FLOW RATE M3/HR 2.5 @ 10MTR HEAD - SINGLE PHASE 230V, 4.2AMP
DRX-10M-AUT	MAXIMUM IMMERSION 10 METERS. POWER 1HP/0.75KW. FLOW RATE M3/HR 8.5 @ 10MTR HEAD - SINGLE PHASE 230V, 5.1AMP
DRX-15M-AUT	MAXIMUM IMMERSION 10 METERS. POWER 1.5HP/1.1KW. FLOW RATE M3/HR 12 @ 10MTR HEAD - SINGLE PHASE 230V, 8.3AMP
DRX-10T	MAXIMUM IMMERSION 10 METERS. POWER 1HP/0.75KW. FLOW RATE M3/HR 8.5 @ 10MTR HEAD - THREE PHASE 400V, 1.9AMP
DRX-15T	MAXIMUM IMMERSION 10 METERS. POWER 1.5HP/1.1KW. FLOW RATE M3/HR 12 @ 10MTR HEAD - THREE PHASE 400V, 2.8AMP
DRX-20T	MAXIMUM IMMERSION 10 METERS. POWER 2HP/1.50KW. FLOW RATE M3/HR 18 @ 10MTR HEAD - THREE PHASE 400V, 3.6AMP
