High-intensity medium pressure UV system designed for efficient disinfection
and chloramine reduction in swimming pools and larger water volumes
reducing time and energy consumption. Emits a broad UV spectrum for
enhanced water clarity, ensuring superior performance in high-flow and
variable conditions. A wider UV spectrum enhances the system’s ability to
eliminate pathogens, as different wavelengths target and break down various
harmful substances more effectively. Compact design with fewer lamps for
space-saving installation.

Technical features

• High lamp tube power, large processing capacity, and superior
  sterilization efficiency ensure optimal performance and rapid
  disinfection.
• Effectively eliminates toxic trichloramine and the unpleasant “pool”
  odor, while reducing the need for additional pool chemicals.
• Operating Capacity & Flow rate : Aqua Tech MPUV have the flow
  rate range from 15 – 1460 Cu.m/Hr for 0.5 – 18 kw of UV capacity with
  Quartz glass transmittence of 95%.
• 200-400nm Multi-Spectrum UV Radiation: The medium-pressure UV
  system emits a broad 200-400nm spectrum, enhancing pathogen
  inactivation and effectively breaking down contaminants. This multispectrum
  capability ensures efficient water treatment and superior
  microbial control. 5000 hrs of lamp life.

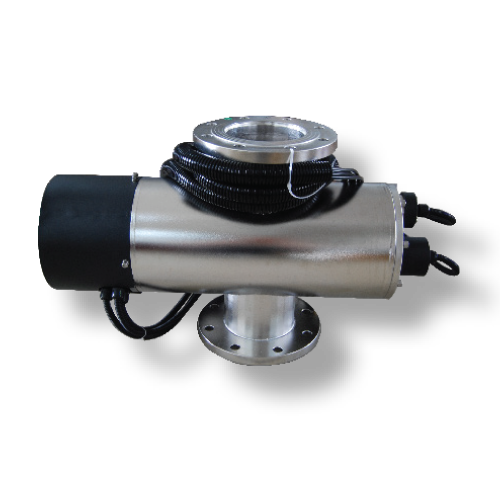

• SS316L Medium-Pressure UV Housing: Constructed from SS316L
  stainless steel, offering superior corrosion resistance and durability.
  Rated for up to 10 bar pressure, with a DN flange connection for easy
  integration. The inline system ensures simple & secure installation.

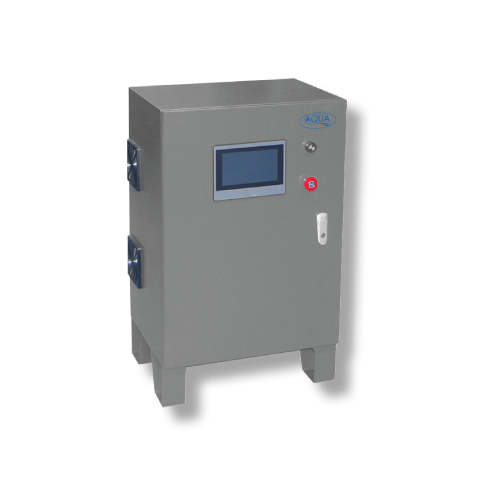

• Electrical Control Panel with PLC Automation: Constructed from
  carbon steel or SS304 stainless steel, featuring an HMI system for realtime
  monitoring of lamp life, UV intensity, and chamber temperature.
  Includes overheat protection and RS485 communication for ballast,
  ensuring efficient and reliable operation. MODBUS-TCP protocol for
  BMS communication is available upon request.
• Environmental Benefits: By reducing chemical dependency, it helps
  eliminate harmful byproducts, improving water quality, enhancing
  energy efficiency, and lowering the carbon footprint, making it
  environmentally friendly.
