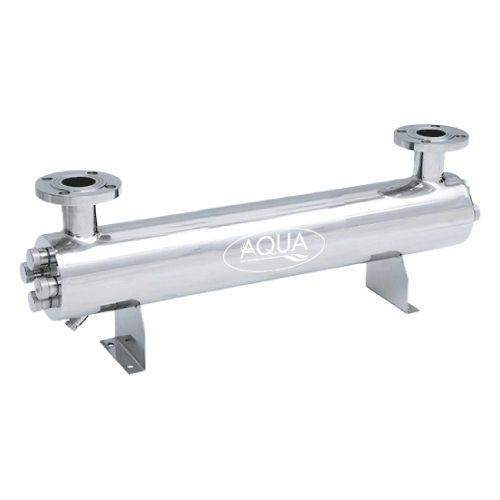

AQUA PRO AISI316

Low-pressure UV system designed for effective water disinfection. Constructed
with SS316 material for resistance to corrosion and UV degradation, it
ensures long-term performance in harsh environments. Ideal for low-pressure
applications in residential and commercial water disinfection systems.

Technical features

Patented ballast technology for specially designed preheat type
lamps to avoid burning of lamp tubes.
DN standard flange connections, Every UV cavity is subjected to
hydrostatic pressure testing of 7-15 bar to ensure the structural integrity.
Aquapro AISI UV have the flow rate range from 4 – 394 Cu.m/Hr for
80 – 2560 watts of UV capacity with Quartz glass transmittence of 95%.
Service life of UV lamps are up to 12000 Hrs and cavity 20 years.
The UV system supports supply voltages of 220V/50Hz and 380V/60Hz
(Optional). It is capable of connecting up to 5 meters of wire between
the panel and the UV system, for installation flexibility.
The system operates at a working pressure of up to 8 bar.
Analogue lamp life monitor and work status indicators, Acousto-Optic
alarm on system fault.
Energy-efficient operation with low power consumption, reducing
carbon footprint and minimizing environmental impact by lowering
chemical usage and harmful byproducts.
Horizontal, vertical, or combined configuration based on space,
seismic, and environmental requirements.
UV intensity monitors or lamp output reading monitors with sensors are
available upon request.

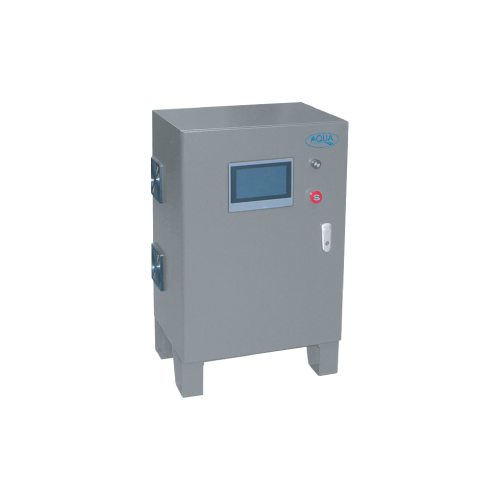

PLC control panel with MODBUS-TCP protocol for BMS communication
is available upon request.

Inquire

Models

CODE	DESCRIPTION
AQUAPRO-AISI316-5.5T40W-2U	AQUA PRO AISI316 - 40 WATTS
AQUAPRO-AISI316-8.5T40W-3U	AQUA PRO AISI316 - 40 WATTS
AQUAPRO-AISI316-10T40W-4U	AQUA PRO AISI316 - 40 WATTS
AQUAPRO-AISI316-12T80W-2U	AQUA PRO AISI316 - 80 WATTS
AQUAPRO-AISI316-20T80W-3U	AQUA PRO AISI316 - 80 WATTS
AQUAPRO-AISI316-25T80W-4U	AQUA PRO AISI316 - 80 WATTS
AQUAPRO-AISI316-30T80W-5U	AQUA PRO AISI316 - 80 WATTS
AQUAPRO-AISI316-35T80W-6U	AQUA PRO AISI316 - 80 WATTS
AQUAPRO-AISI316-40T80W-7U	AQUA PRO AISI316 - 80 WATTS
AQUAPRO-AISI316-45T155W-4U	AQUA PRO AISI316 - 155 WATTS
AQUAPRO-AISI316-55T155W-5U	AQUA PRO AISI316 - 155 WATTS
AQUAPRO-AISI316-66T155W-6U	AQUA PRO AISI316 - 155 WATTS
AQUAPRO-AISI316-77T155W-7U	AQUA PRO AISI316 - 155 WATTS
AQUAPRO-AISI316-90T320W-4U	AQUA PRO AISI316 - 320 WATTS
AQUAPRO-AISI316-110T320W-5U	AQUA PRO AISI316 - 320 WATTS
AQUAPRO-AISI316-130T320W-6U	AQUA PRO AISI316 - 320 WATTS
AQUAPRO-AISI316-150T320W-7U	AQUA PRO AISI316 - 320 WATTS
AQUAPRO-AISI316-180T320W-8U	AQUA PRO AISI316 - 320 WATTS

Downloads

Data Sheet
